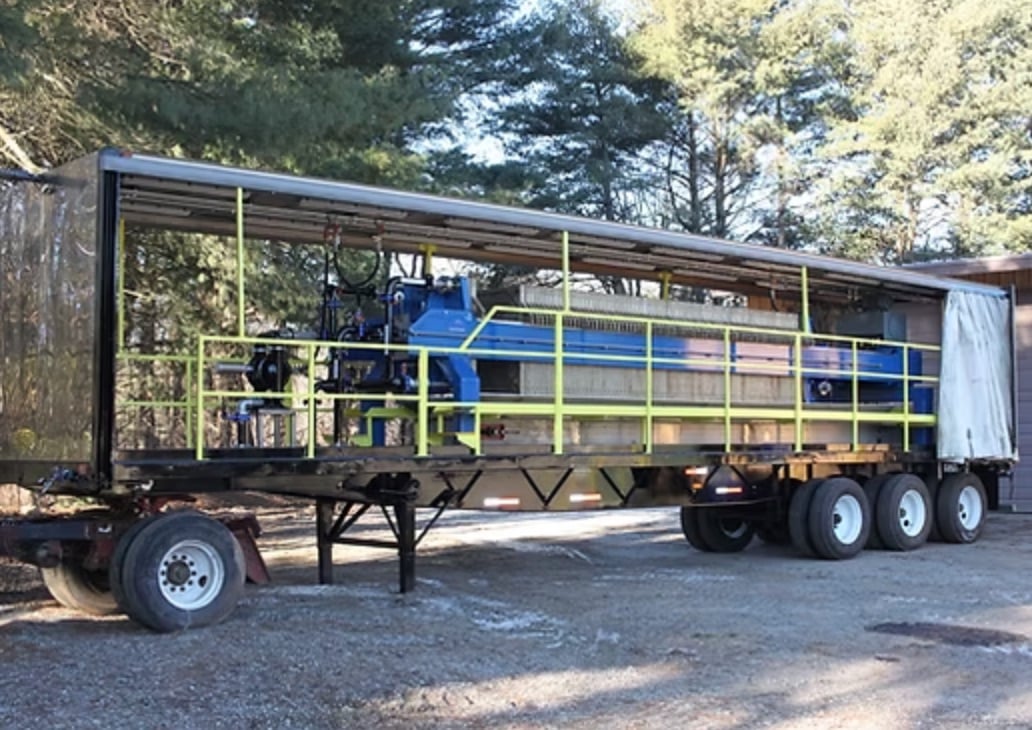

Mobile Filter Press & Plate Press for Rent

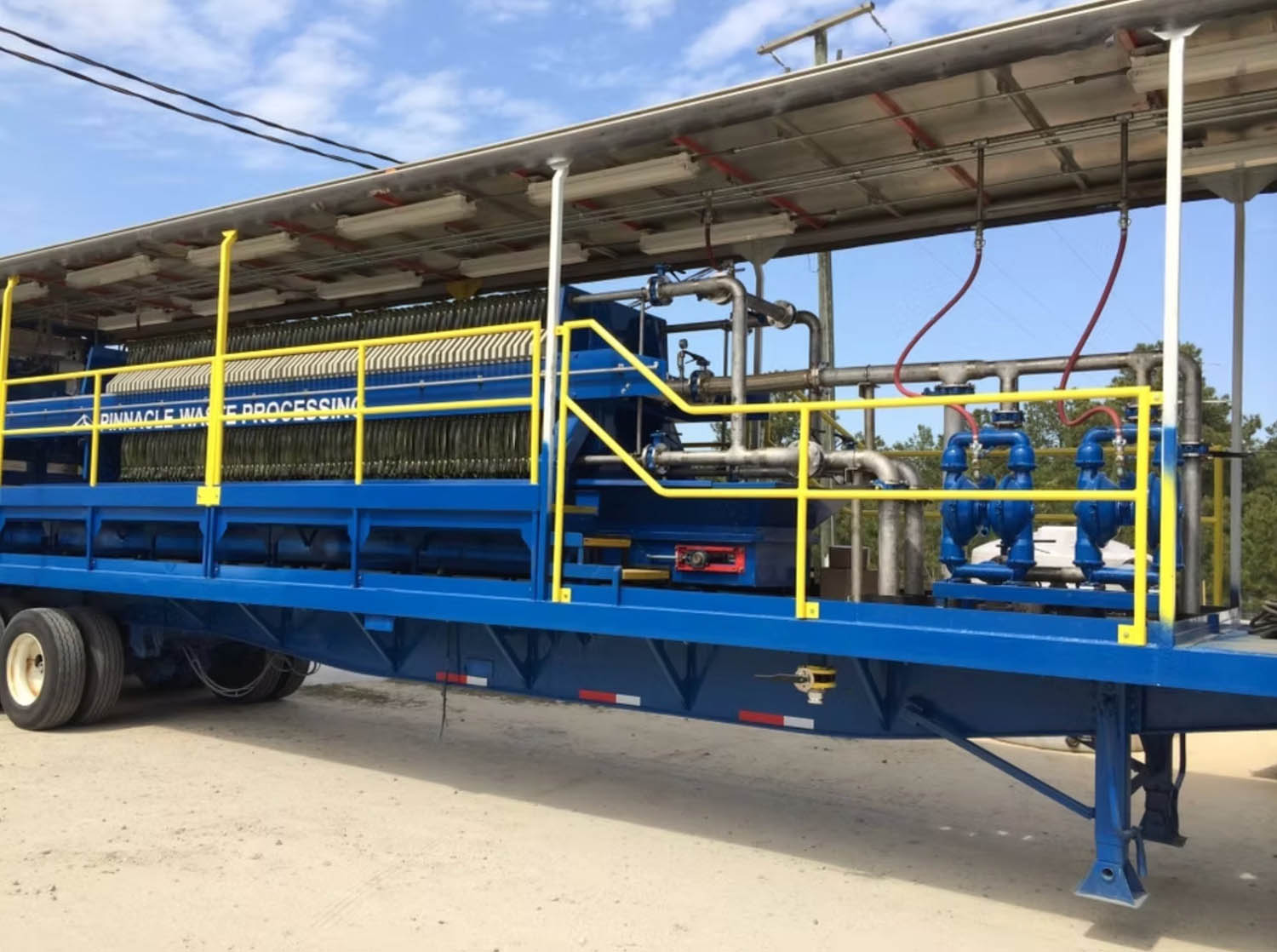

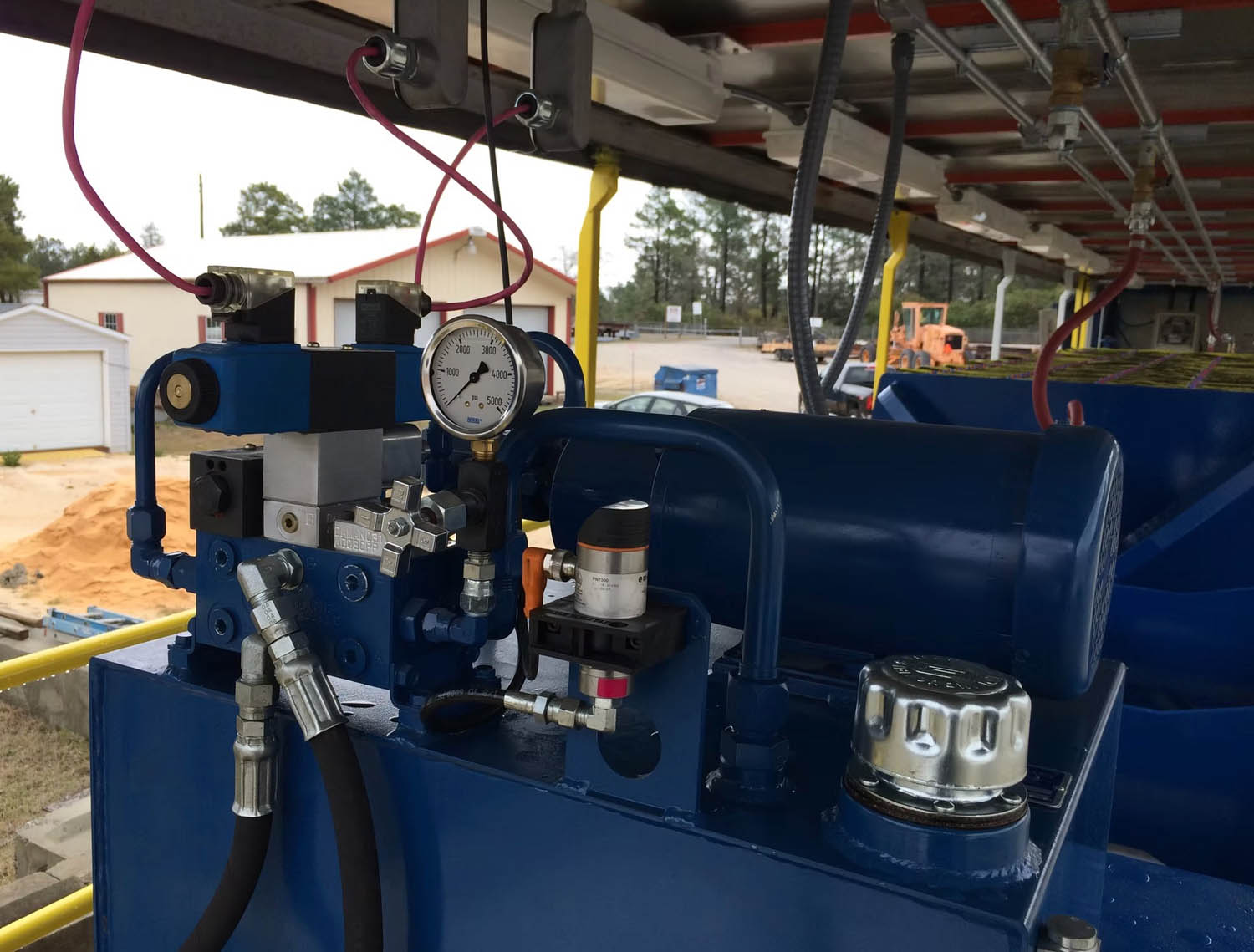

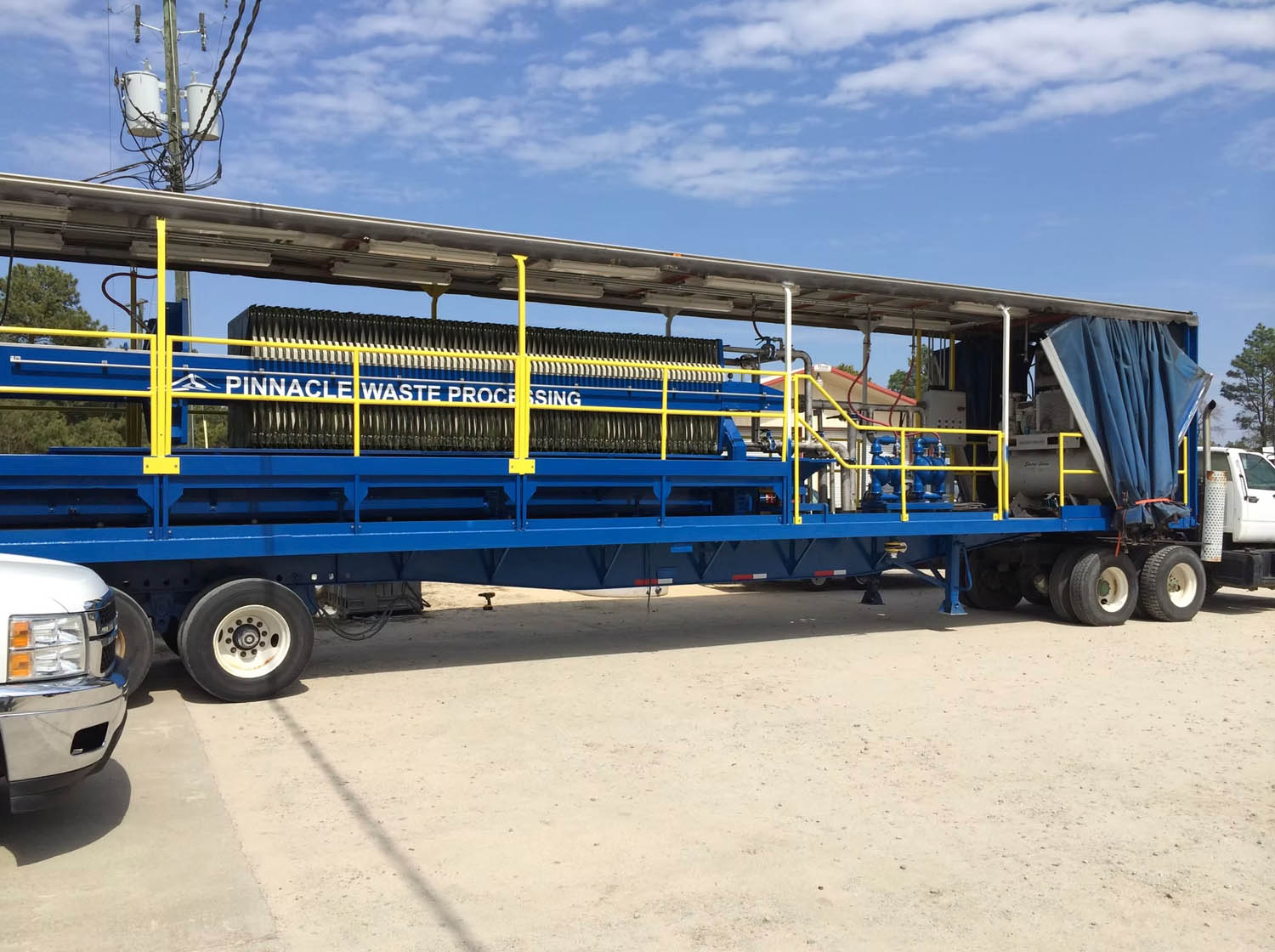

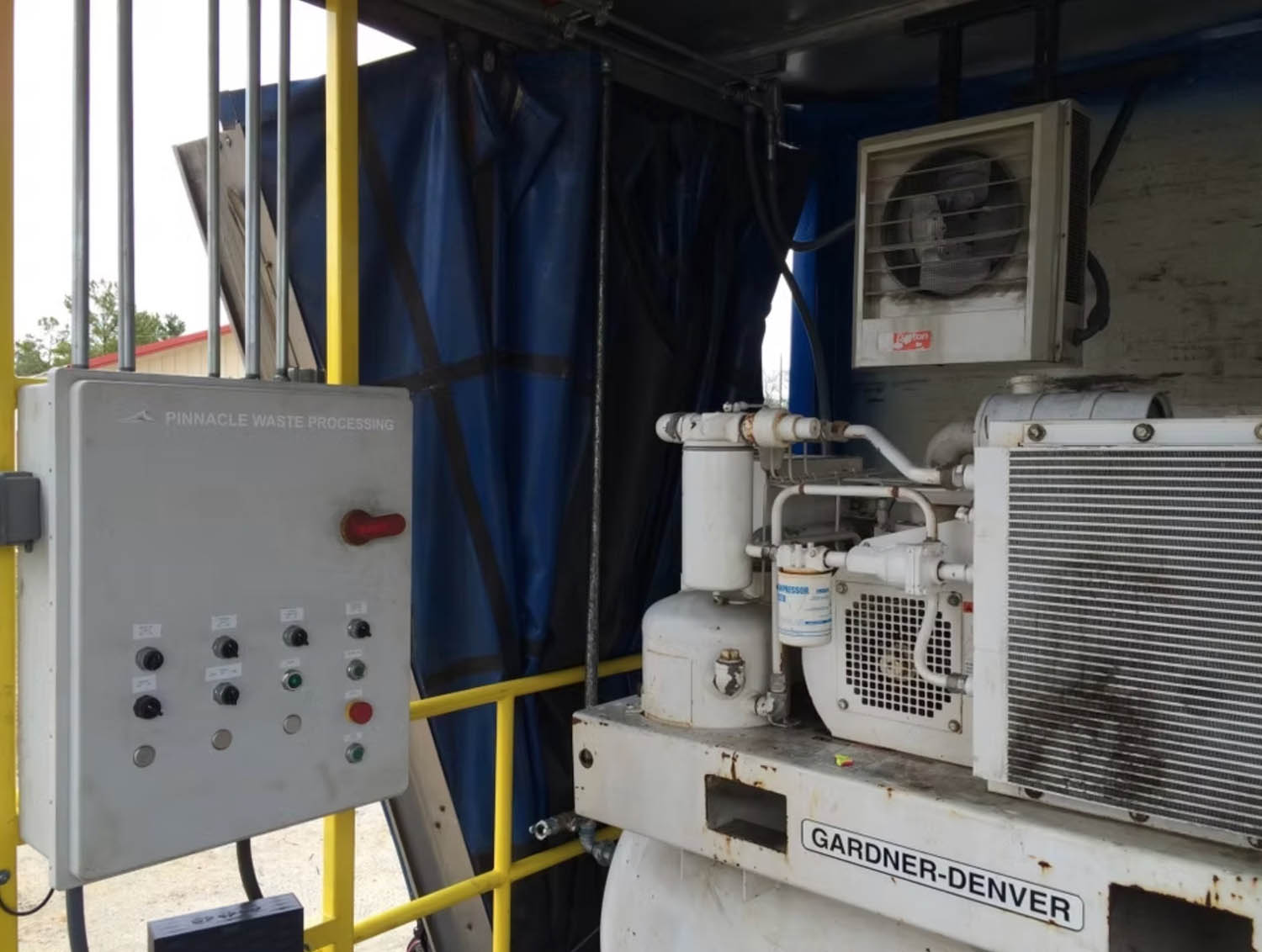

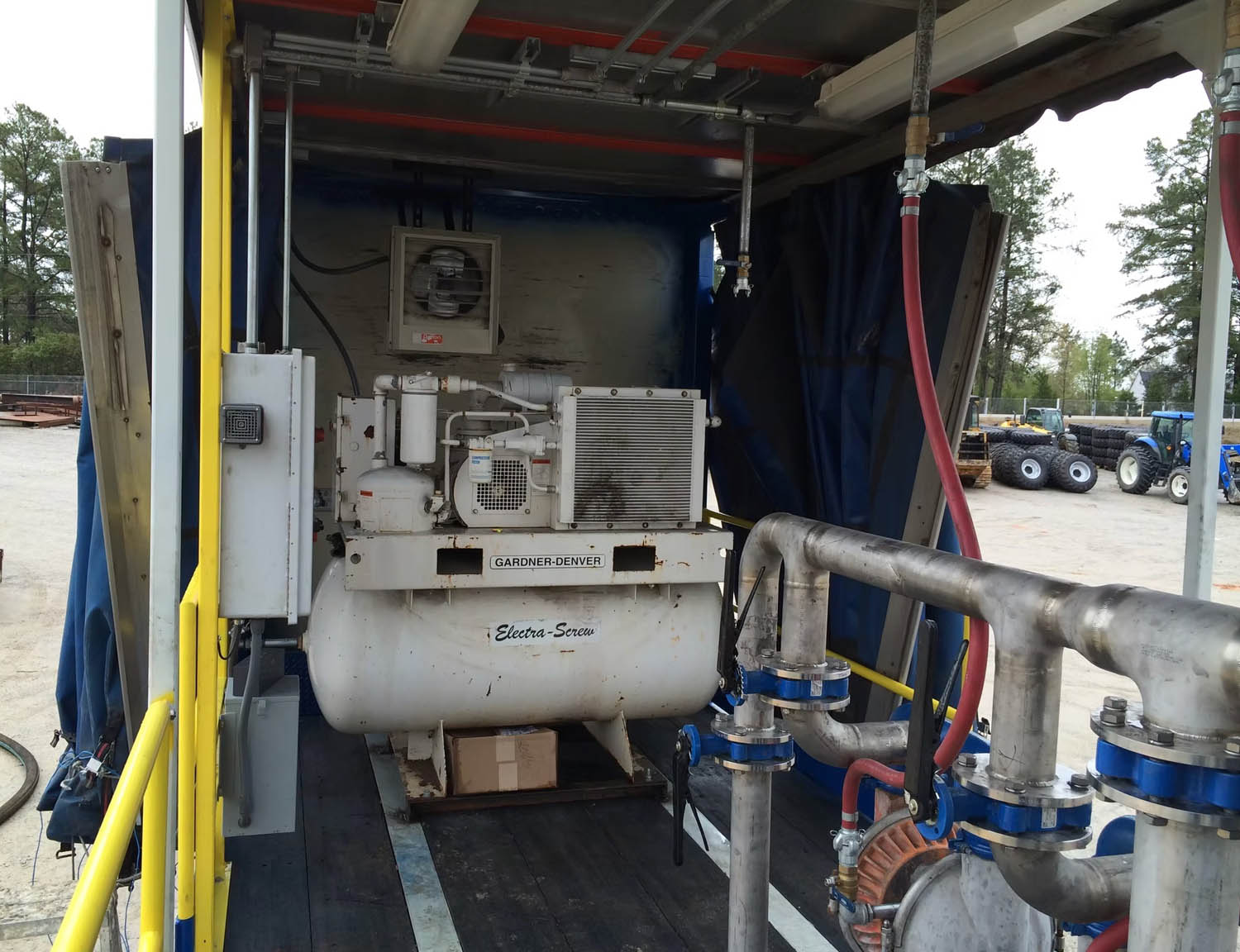

125 FT3 Siemens Plate Filter Press



Technical specifications:

  • Triple axle trailer with roof & sidecurtains

    • GVW: 55,000 lbs without tractor

  • 100 Cubic Foot

  • 1,200 mm polypropylene plates

  • 32 mm cake thickness

  • 100 PSI pumping capacity

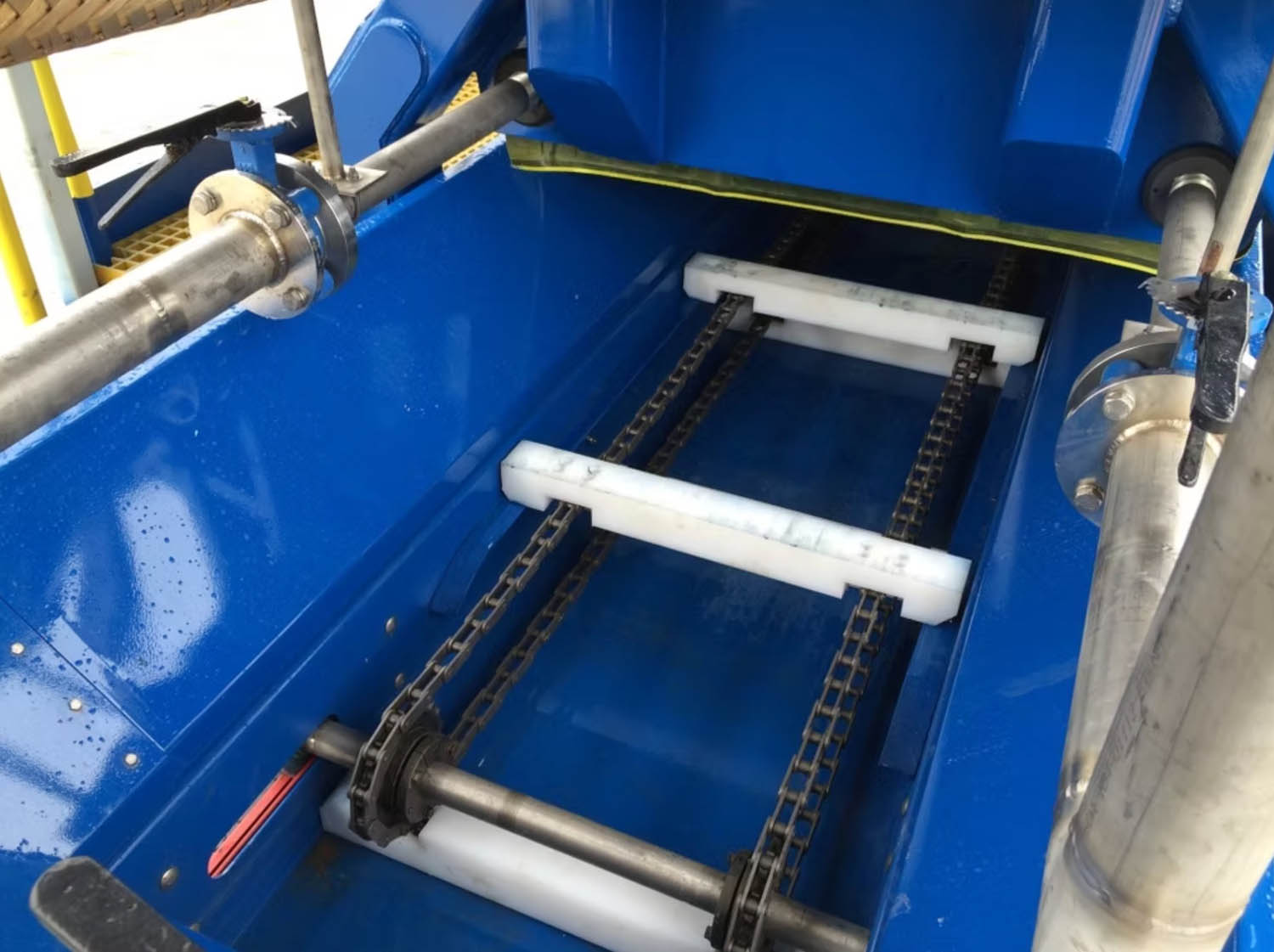

  • Primary sludge cake drag box conveyor

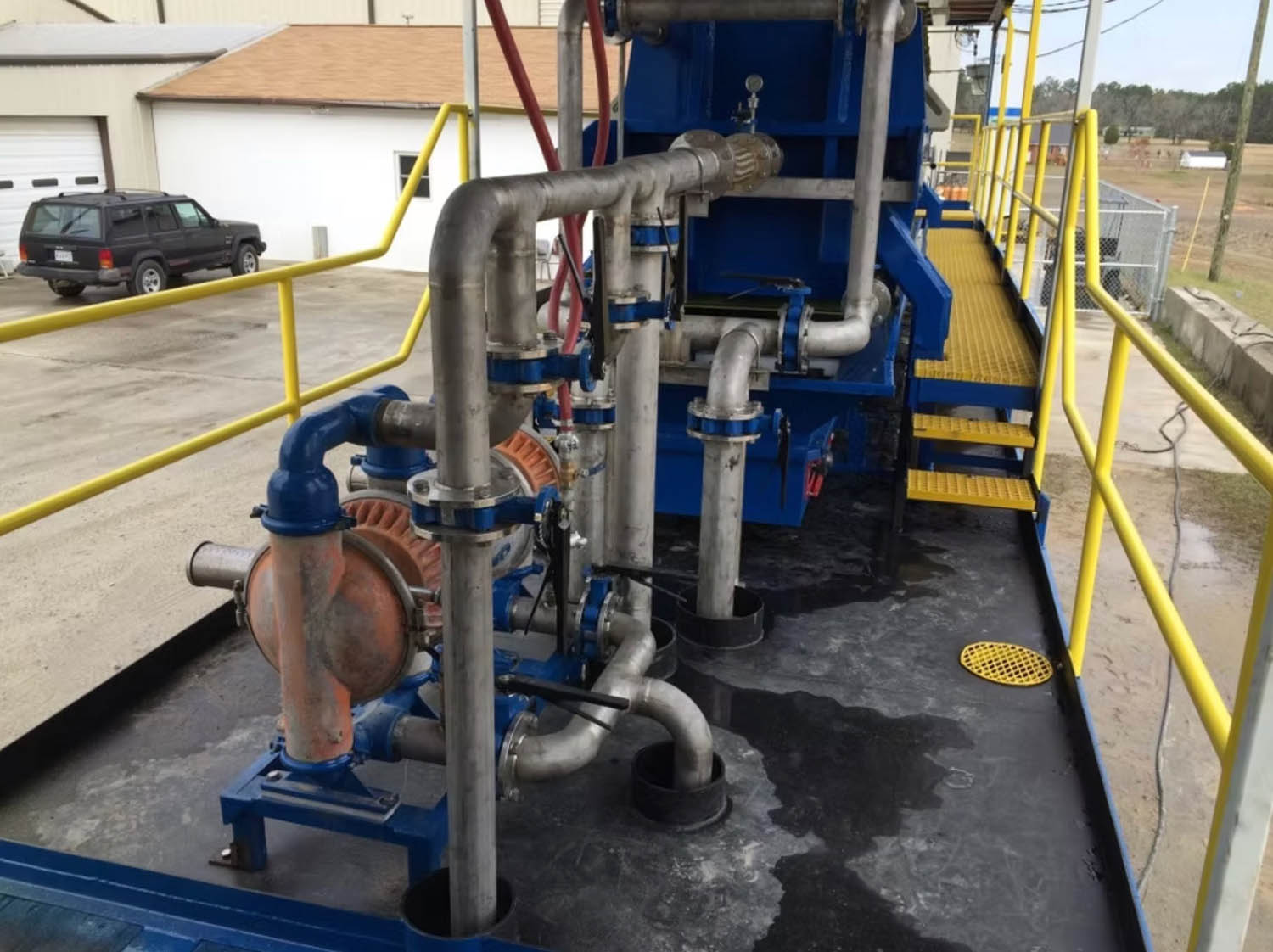

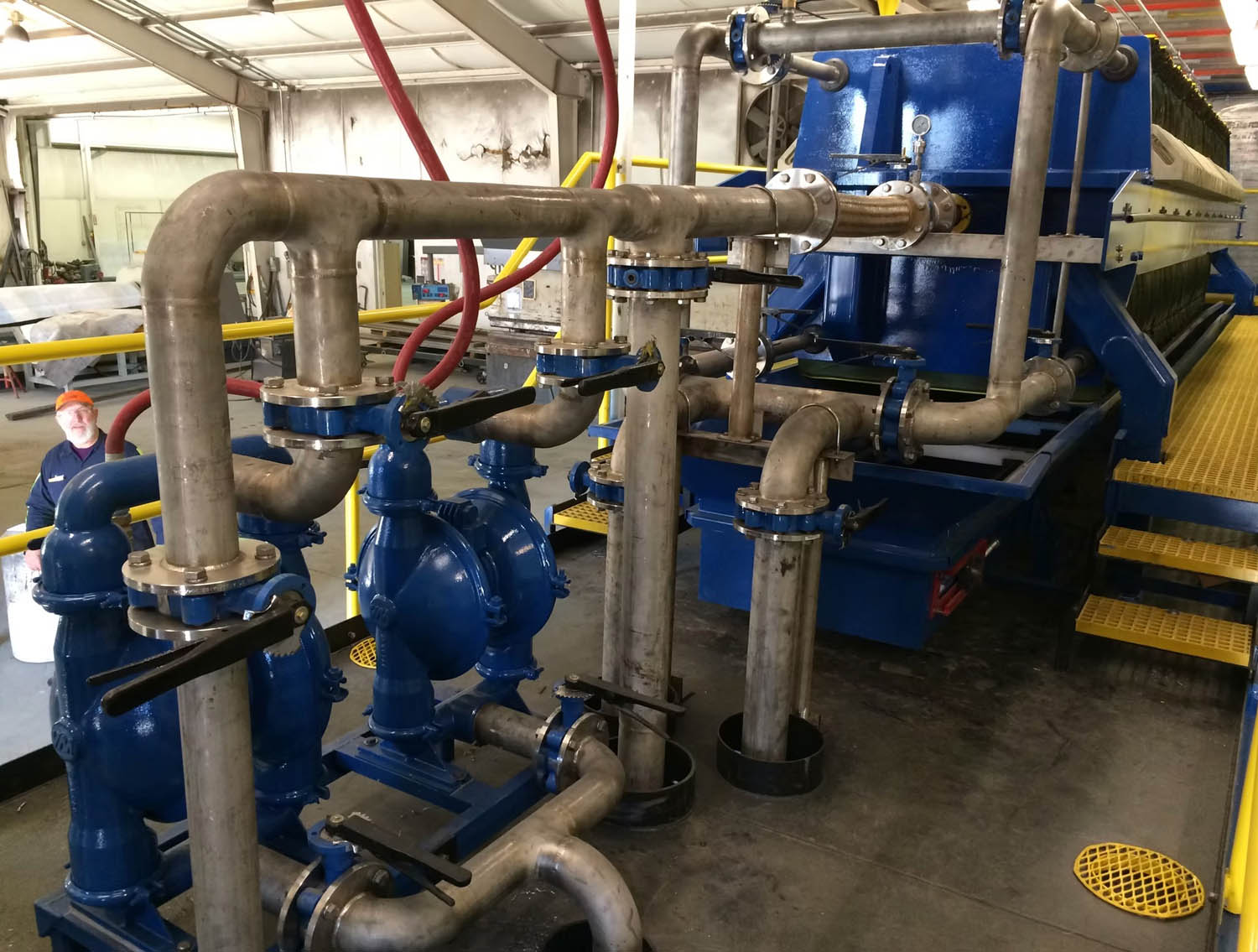

  • Inlet & outlet manifold equipped with:

    • Sch. 40 Stainless with viton butterfly valves

    • Filter cake blow down

    • Core blow

    • Pre-coat valving & isolation

    • Optional double end feed

  • Pumping operations include:

    • Duplex 3" Wilden AOD pumps included

    • Requires 80 SCFM @ 110 PSI

    • 4" isolation for (customer provided) fast fill centrifugal pump

  • Florescent lighting

  • Additional exterior lighting at rear of trailer in conveyor zone

  • On board electric heater

  • Electrical requirements

    • 480 VAC/60 HZ @ 60 amps

    • Single feed central control panel

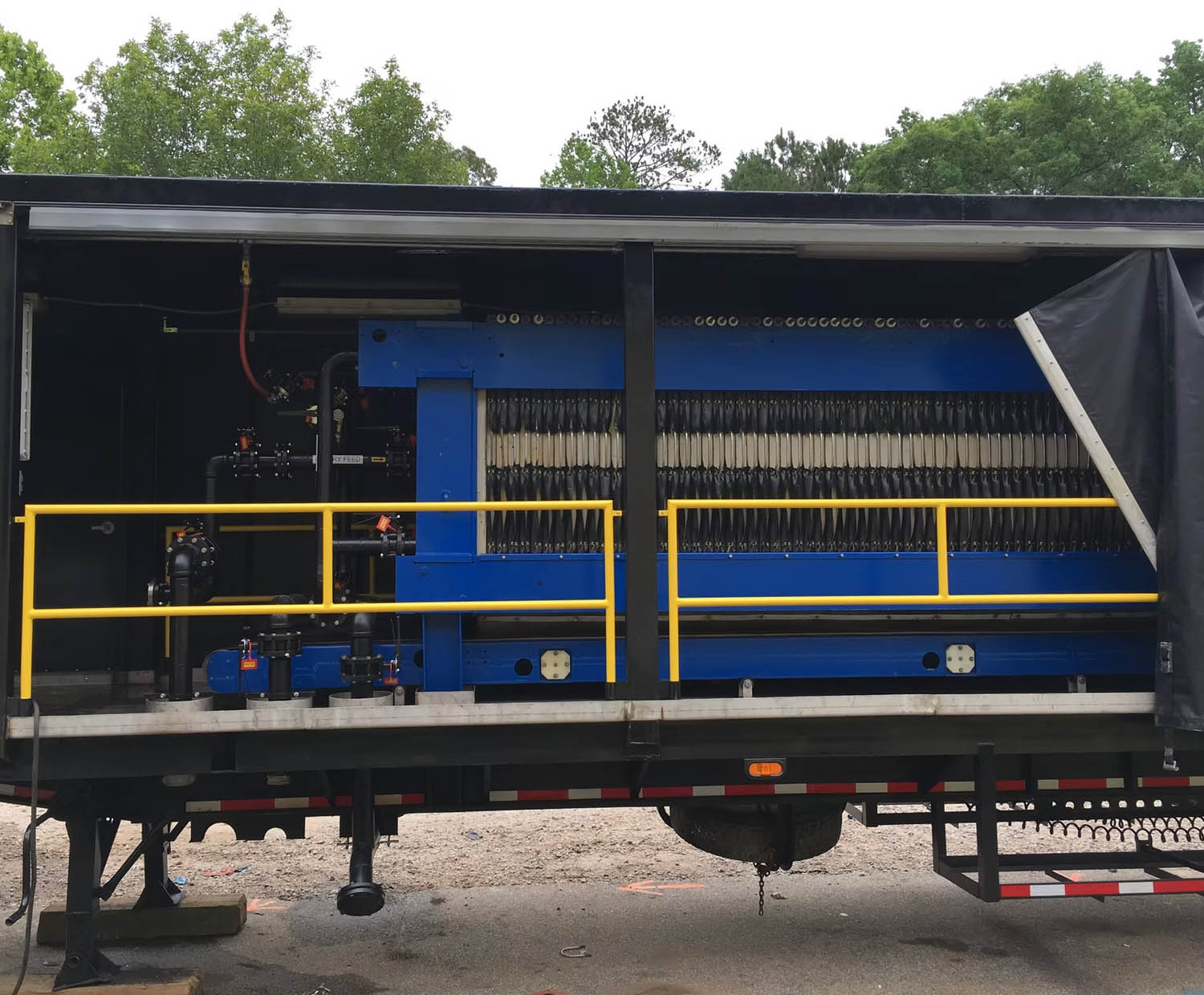

105 FT3 Durco Plate Filter Press



Technical specifications:

  • Triple axle trailer with roof

    • GVW: 77,000 lbs without tractor

  • 105 Cubic Foot

  • 1,200 mm polypropylene plates

  • 25 mm cake thickness

  • 225 PSI pumping capacity

    • High pressure / high temperature plates

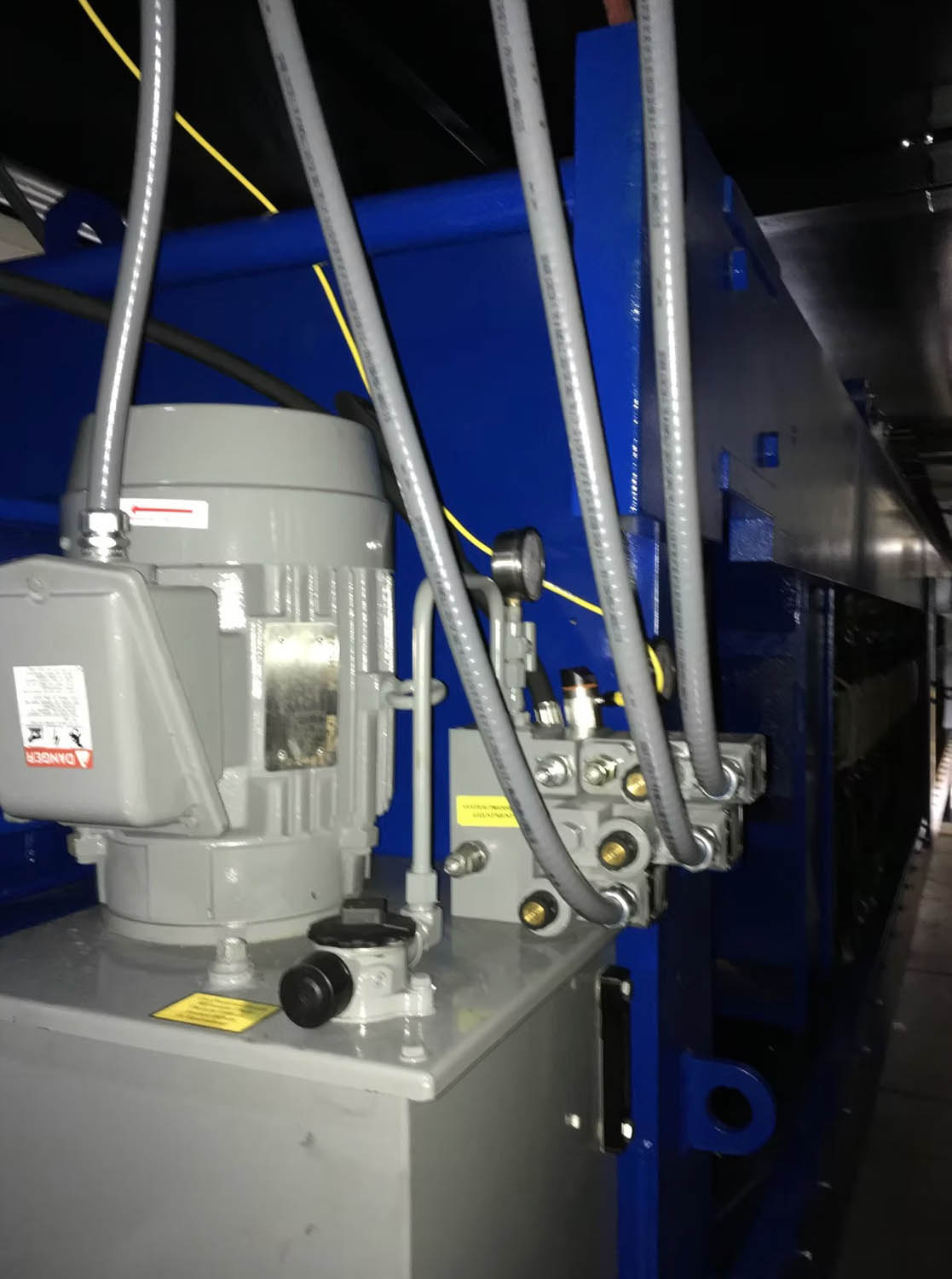

  • Electric over hydraulics

  • Semi-automatic hydraulic plate shifter

  • Primary sludge cake belt conveyor

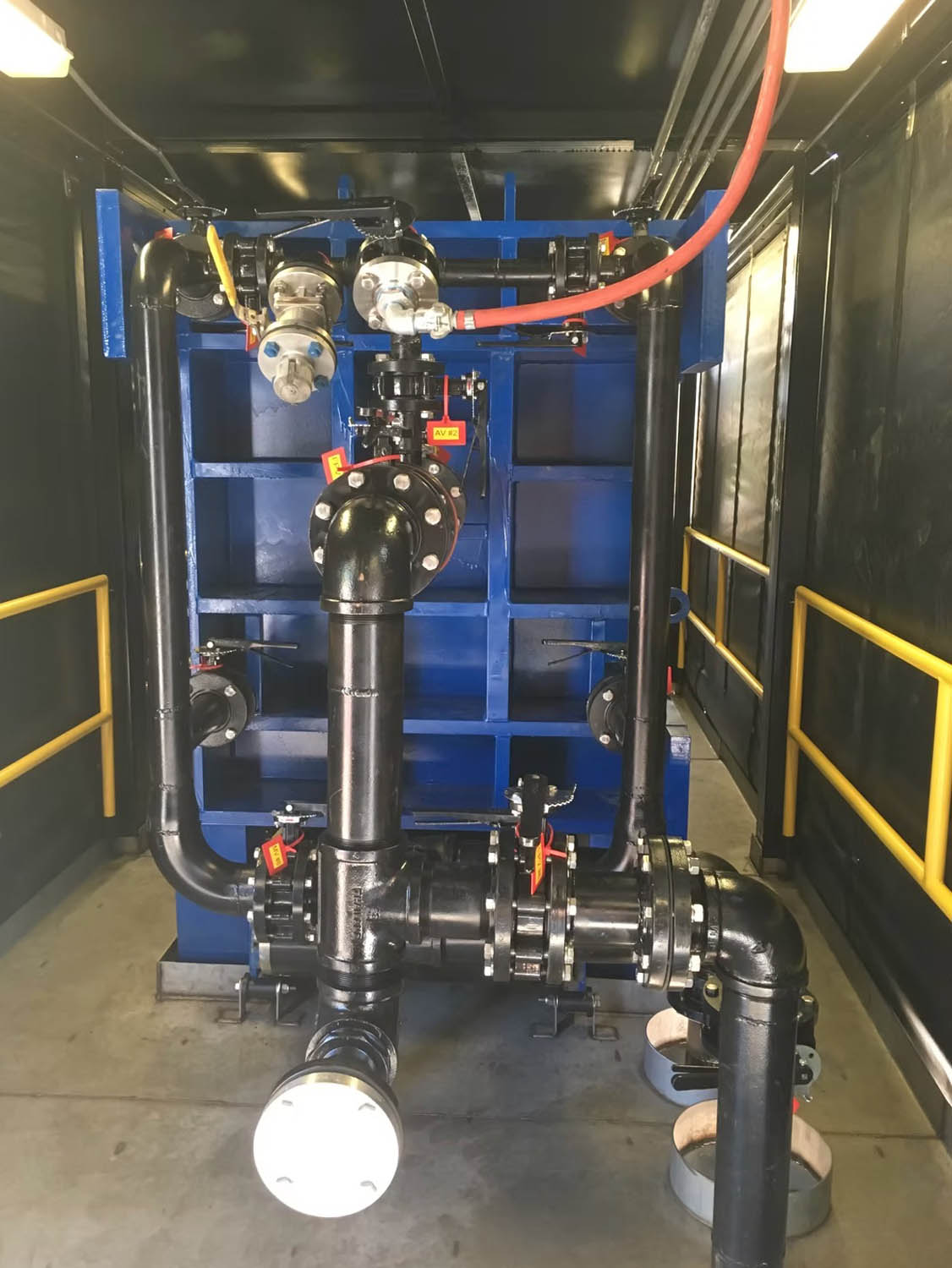

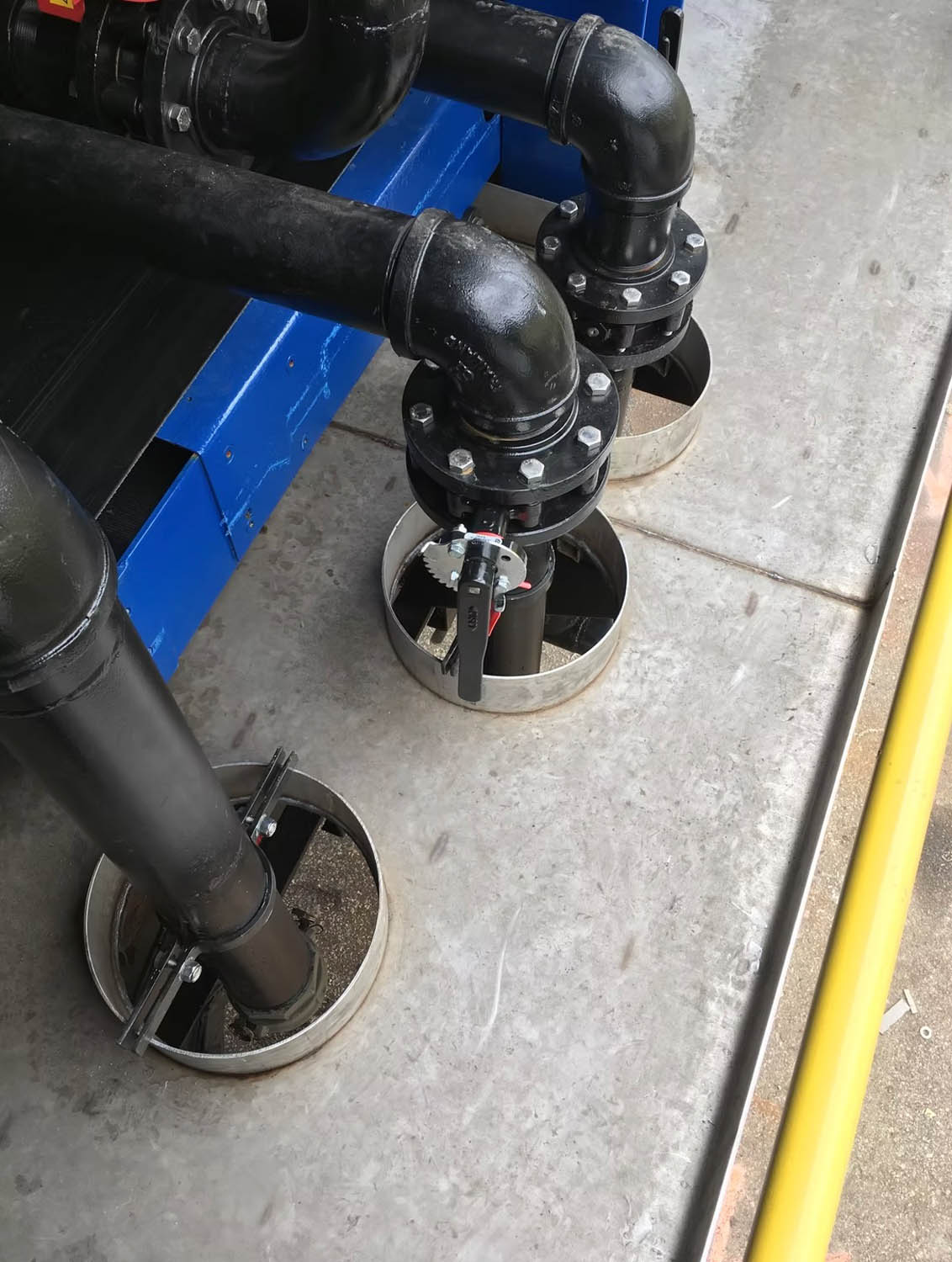

  • Inlet & outlet manifold equipped with:

    • Mild steel with butterfly valves

    • Filter cake blow down

    • Core blow

    • Pre-coat valving & isolation

    • Optional double end feed

  • Pumping operations include:

    • By customer

  • Florescent lighting

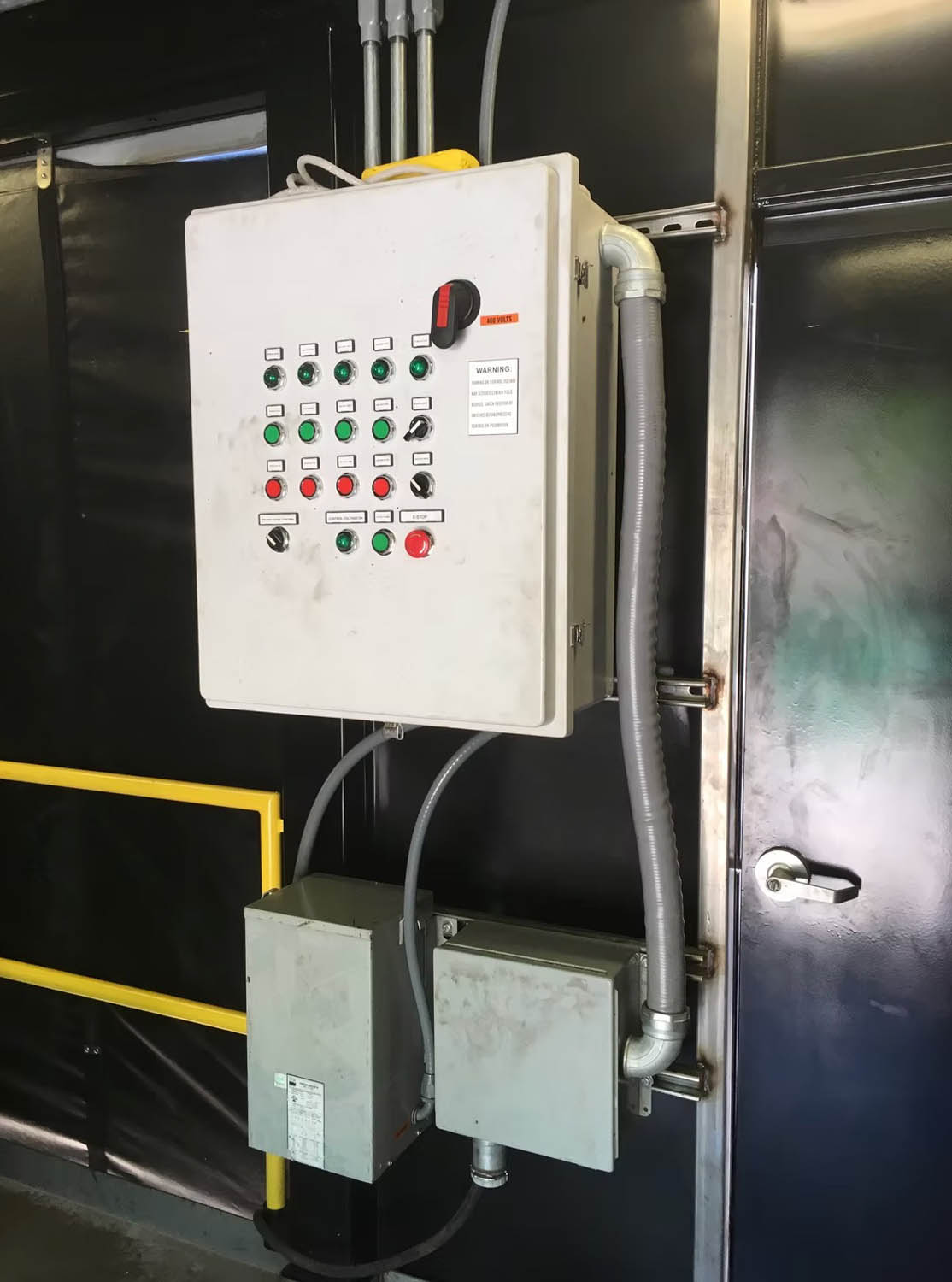

  • Electrical requirements

    • 480 VAC/60 HZ @ 50 amps

    • Single feed central control panel

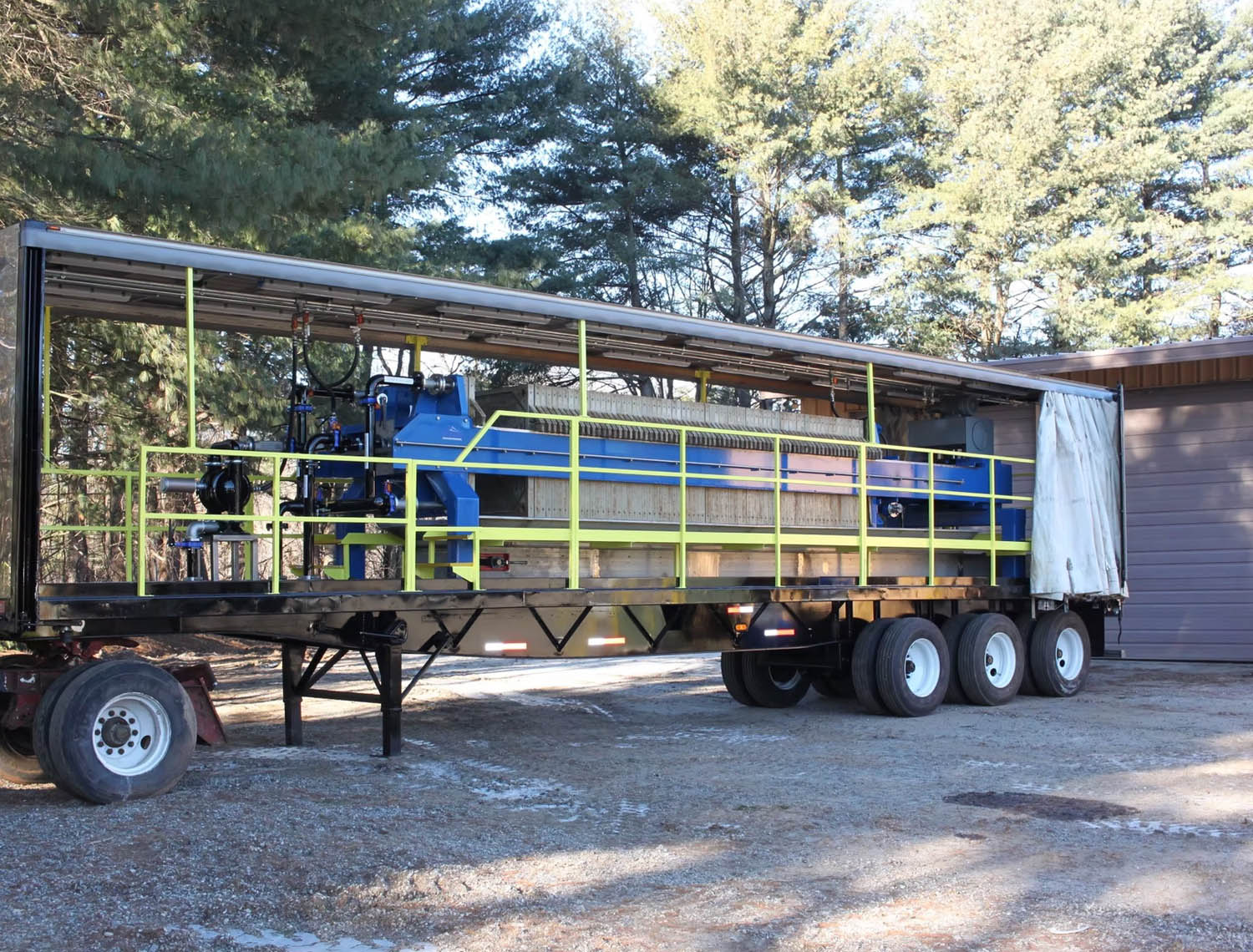

100 FT3 US Filter Plate Filter Press



Technical specifications:

  • Triple axle trailer with roof

    • GVW: 57,000 lbs without tractor

    • Legal Load

  • 100 Cubic Foot

  • 1,200 mm polypropylene plates

  • 32 mm cake thickness

  • 225 PSI pumping capacity

    • High pressure / high temperature plates

  • Semi-automatic plate shifter

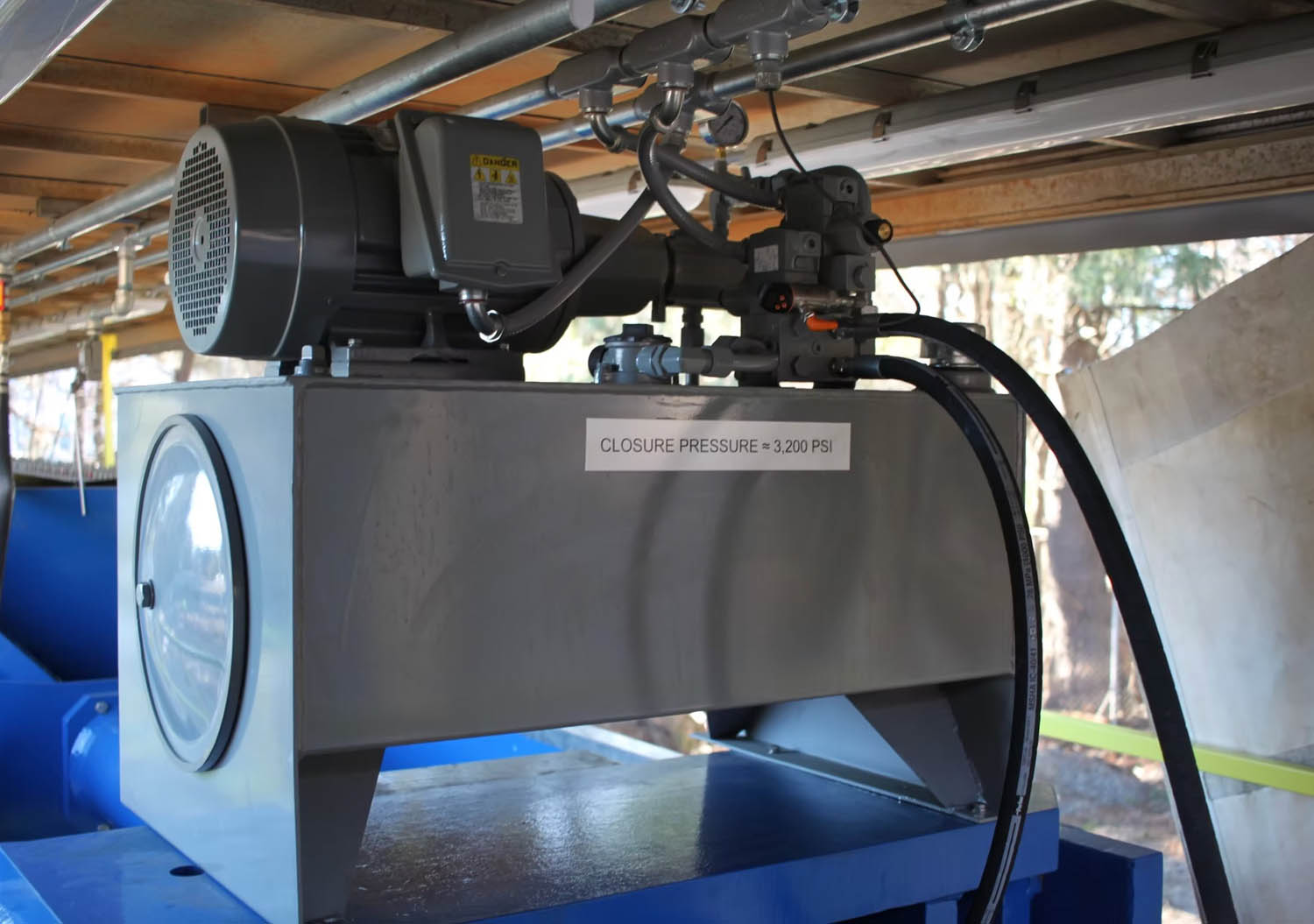

  • Closed Loop Electric over hydraulics

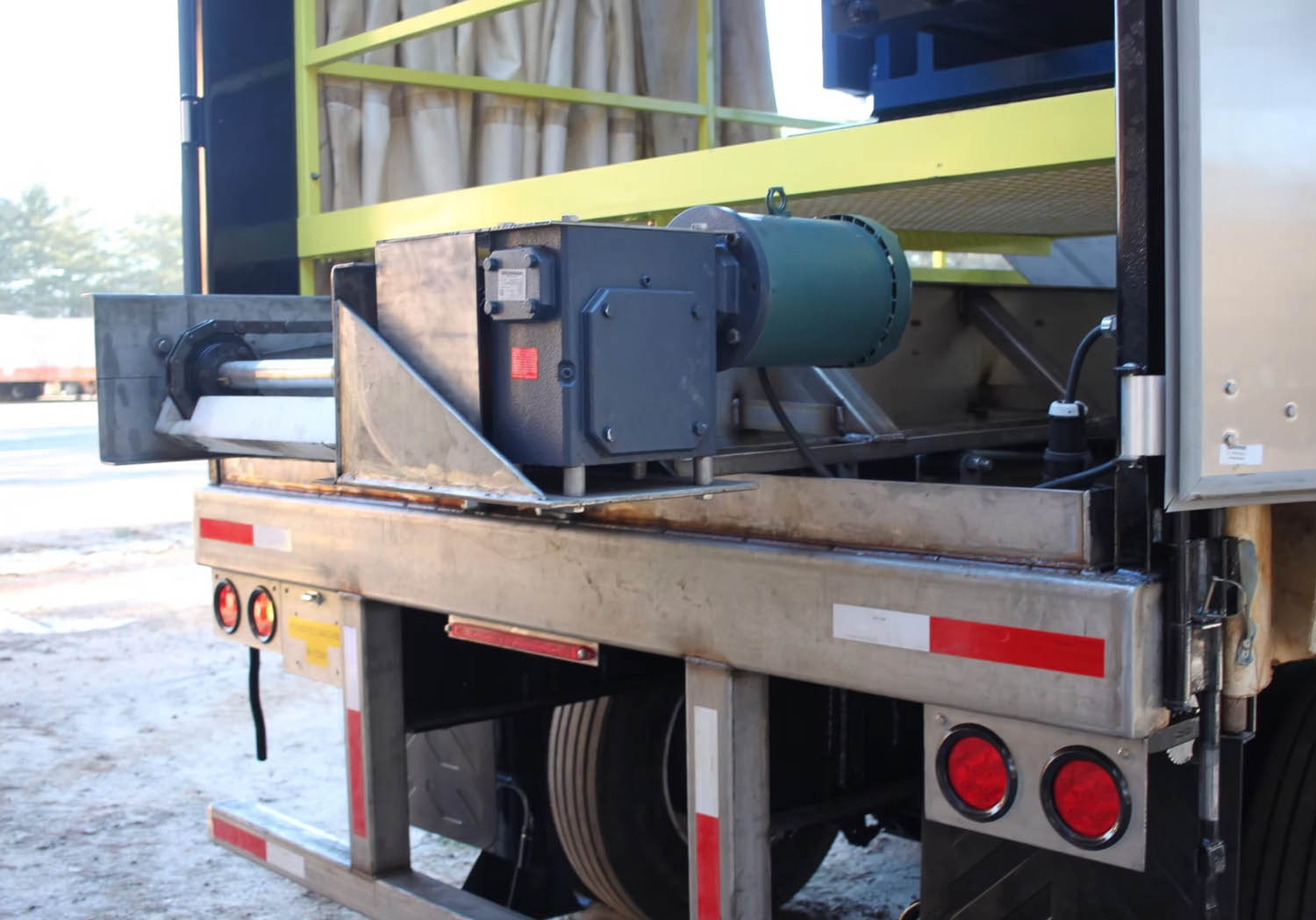

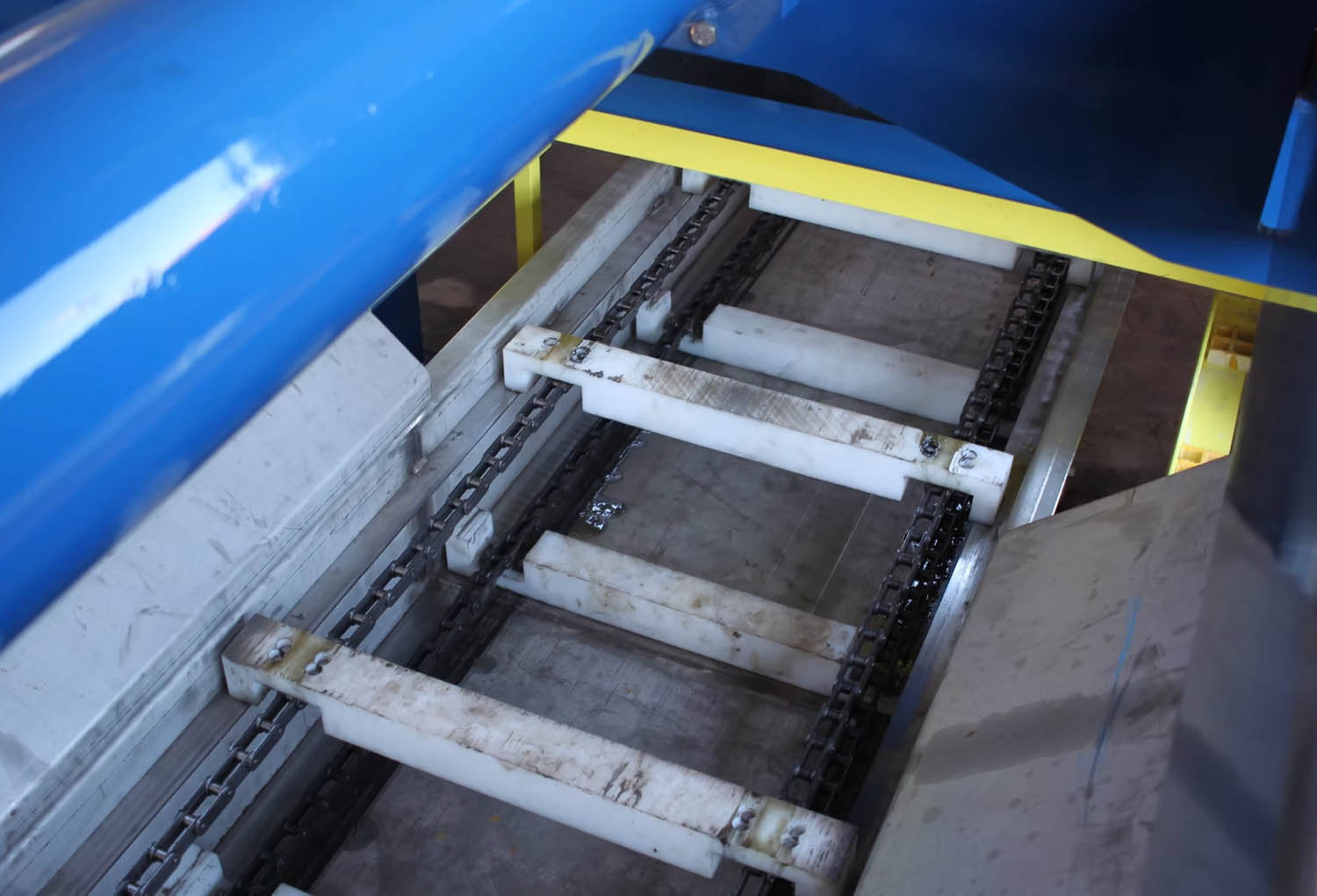

  • 304SS drag box conveyor

  • Floor Pan:  304SS

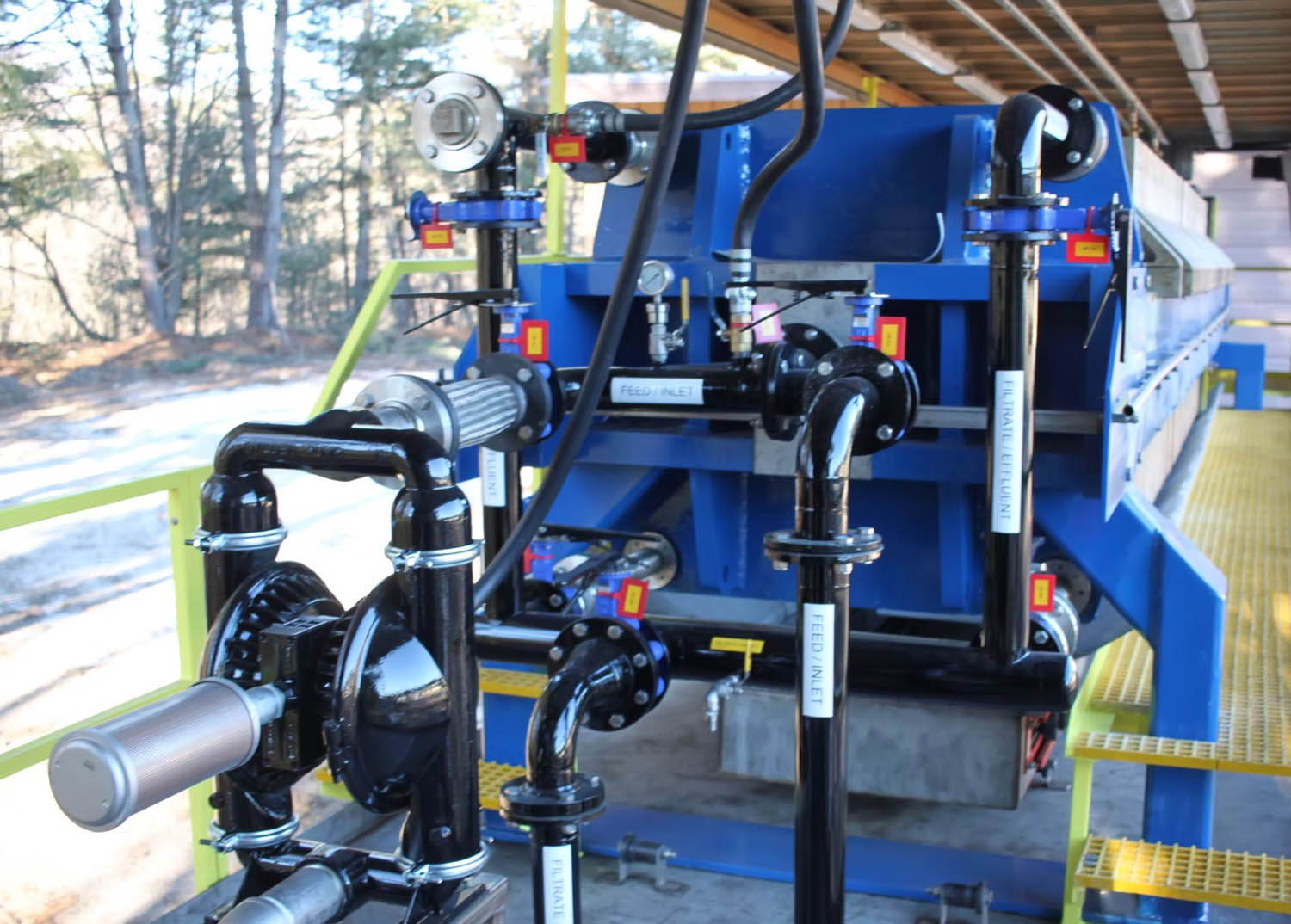

  • Inlet & outlet manifold equipped with:

    • Sch. 40 304SS Manifold

    • Mild steel with butterfly valves

    • Filter cake blow down

    • Core blow

    • Pre-coat valving & isolation

    • Optional double end feed

  • Pumping operations include:

    • 3" Wilden AOD pump

    • Requires 80 SCFM @ 110 PSI

    • 4" isolation for (customer provided) fast fill centrifugal pump

  • LED lighting

  • Electrical requirements

    • 480 VAC/60 HZ @ 50 amps

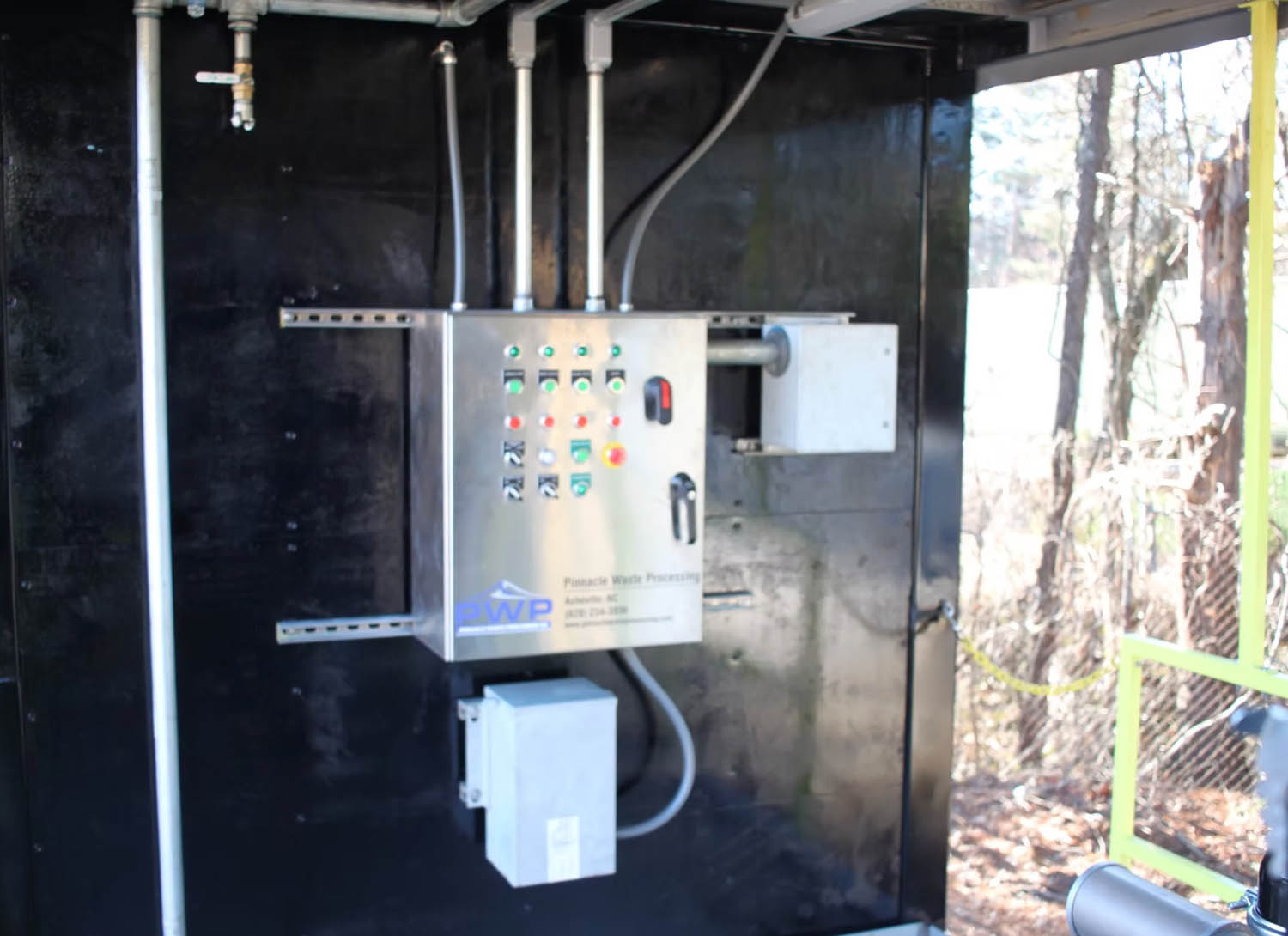

    • Single feed central control panel

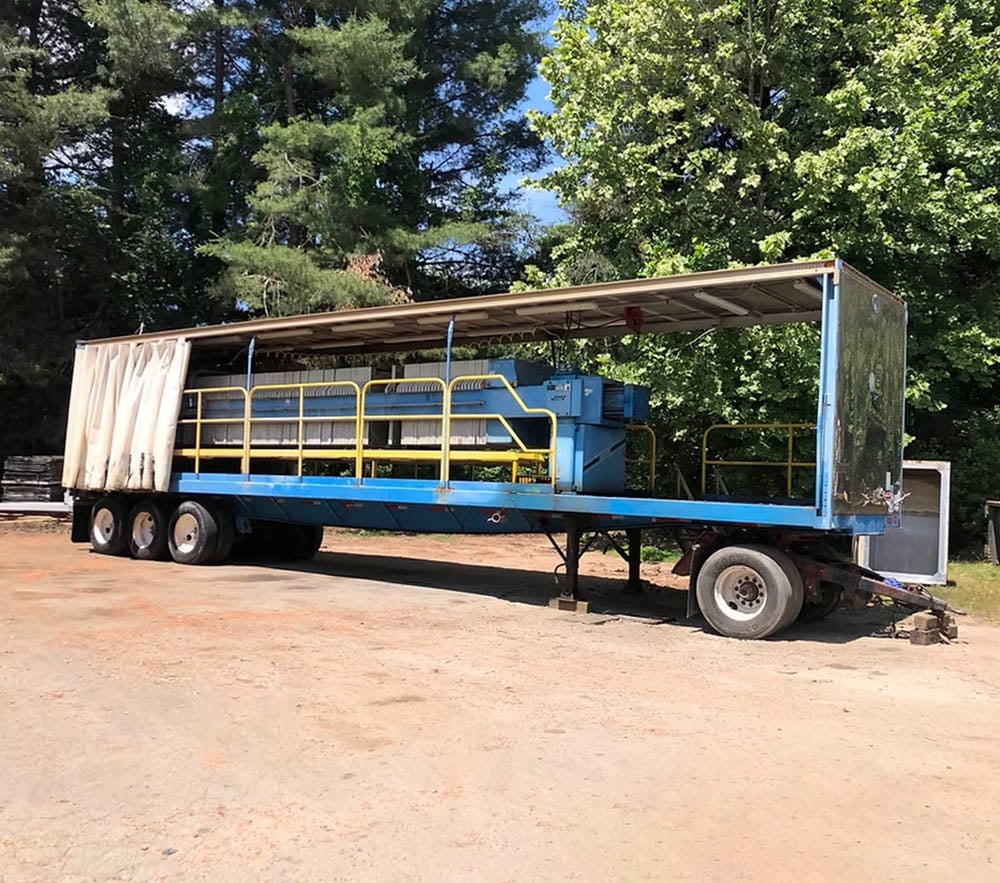

100 FT3 JWI Plate Filter Press



Technical specifications:

  • Triple axle trailer with roof

    • GVW: 67,000 lbs without tractor

  • 100 Cubic Foot

  • 1,200 mm polypropylene plates

  • 25 mm cake thickness

  • 225 PSI pumping capacity

    • High pressure / high temperature plates

  • Semi-automatic plate shifter

  • Closed Loop Electric over hydraulics

  • Primary belt conveyor

  • Inlet & outlet manifold equipped with:

    • Sch. 40 304SS Manifold

    • Mild steel with butterfly valves

    • Filter cake blow down

    • Core blow

    • Pre-coat valving & isolation

  • Pumping operations include:

    • 3" Wilden AOD pump

    • Requires 80 SCFM @ 110 PSI

    • 4" isolation for (customer provided) fast fill centrifugal pump

  • LED lighting

  • Electrical requirements

    • 480 VAC/60 HZ @ 50 amps

    • Single feed central control panel
